Support connecting HMI compatible with Mitsubishi PLC

Supports all text can be connected to Mitsubishi PLC connection

Supports two stepper motors connected

Supports encoder

Supports PC monitoring function

Unique encryption technology,can not decrypt after encrypted

Supports 32-bit

Direct download Without conversion

ARM version PLC Instruction(The old user must see)

1. Expanding internal resources,Achieving continuous address,Expanding resources(M0-M3071,S0-S999,T0-T255,C0-C255,D0-D999)

2. Before,Power off retentive paragraph are D512-D543,M512-M768,S512-S575,And incompatible with Japan's Mitsubishi .After adjusted ARM version,it’s fully compatible with Japan's Mitsubishi, are D200-D500,M500-M1023,S500-S999.

3.High-speed output increased to 2-ways from original1-way,as same as Mitsubishi PLC,support X0-X7.Supports encoder such as C251 or C252,254.But not support C253 and C255.

4.Output drives are domestic before,we imported all output drives for the ARM version,and output current reaches 3A,Since Y0 and Y1 are High-speed output,Circuits are different,So it’s only 1A output current for Y0 and Y1.

5.In order to distinguish old and new versions,using green PCB for old version and black PCB for new.

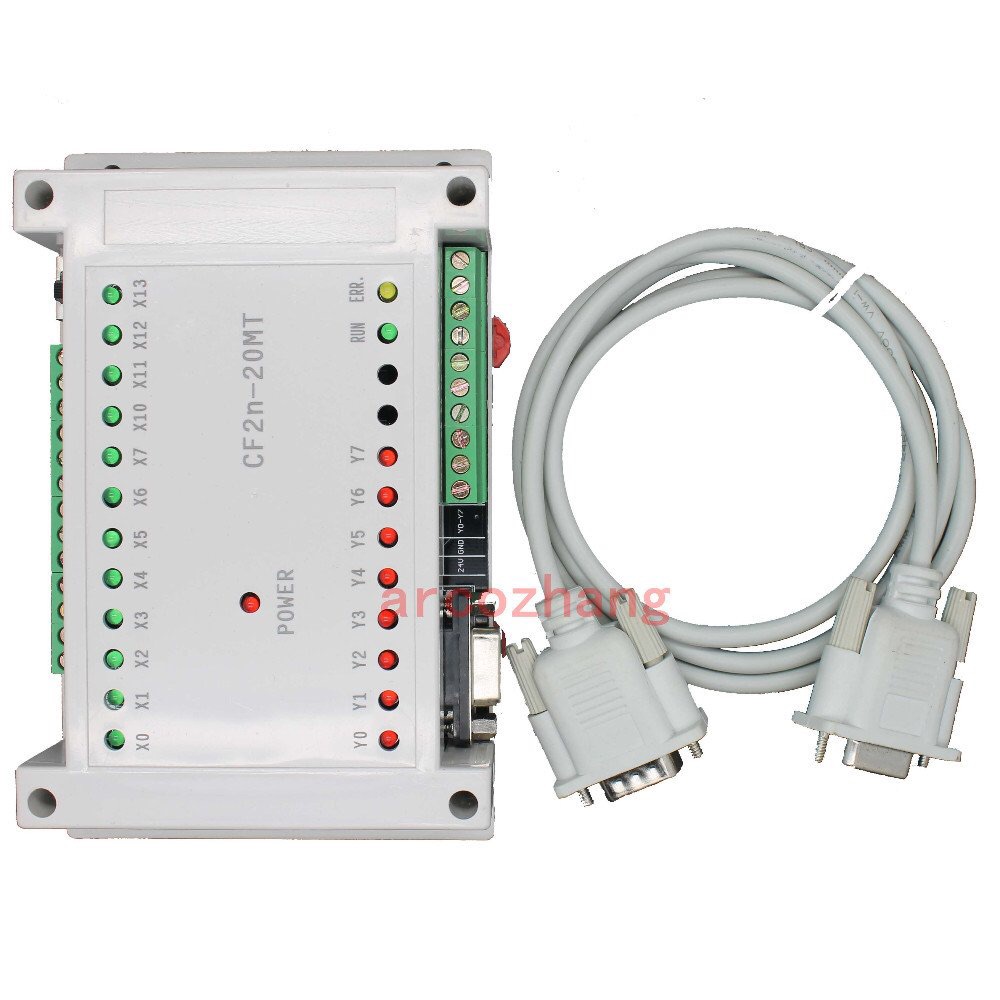

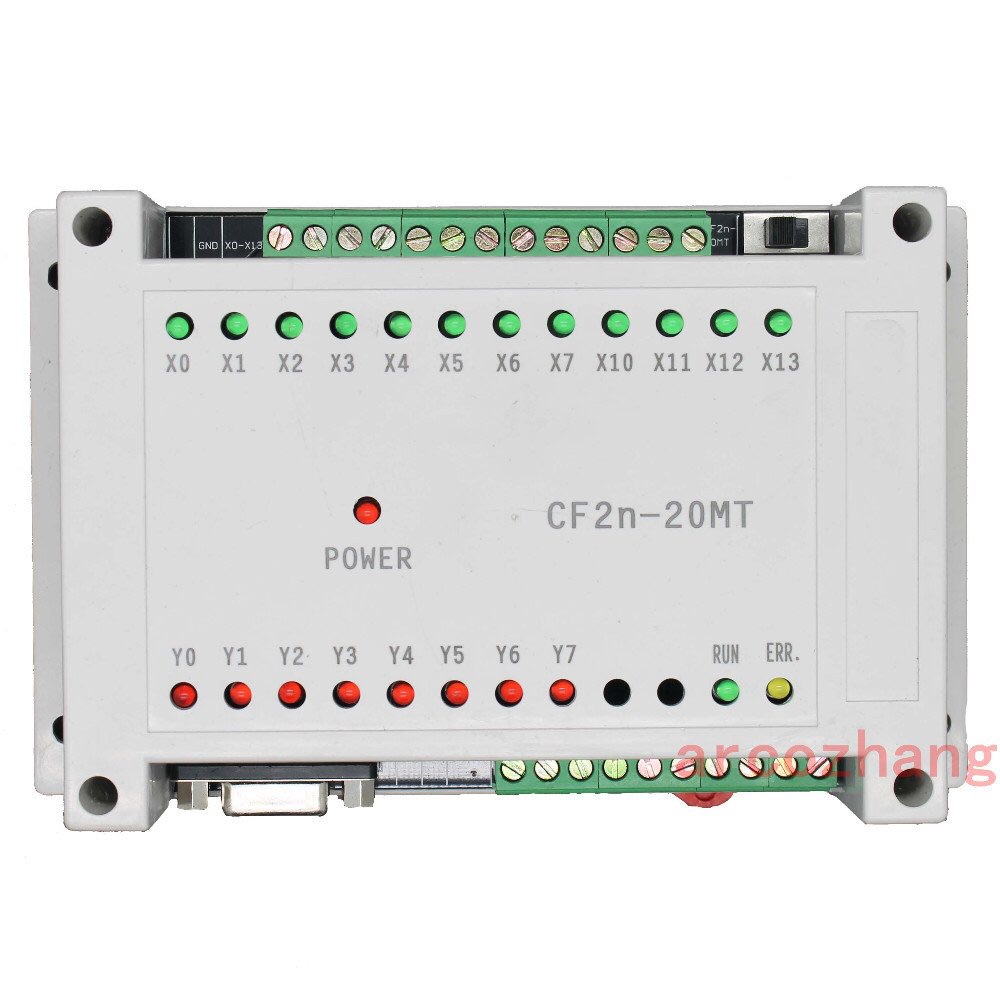

12 ports  isolated inputs 8 ports transistor outputs

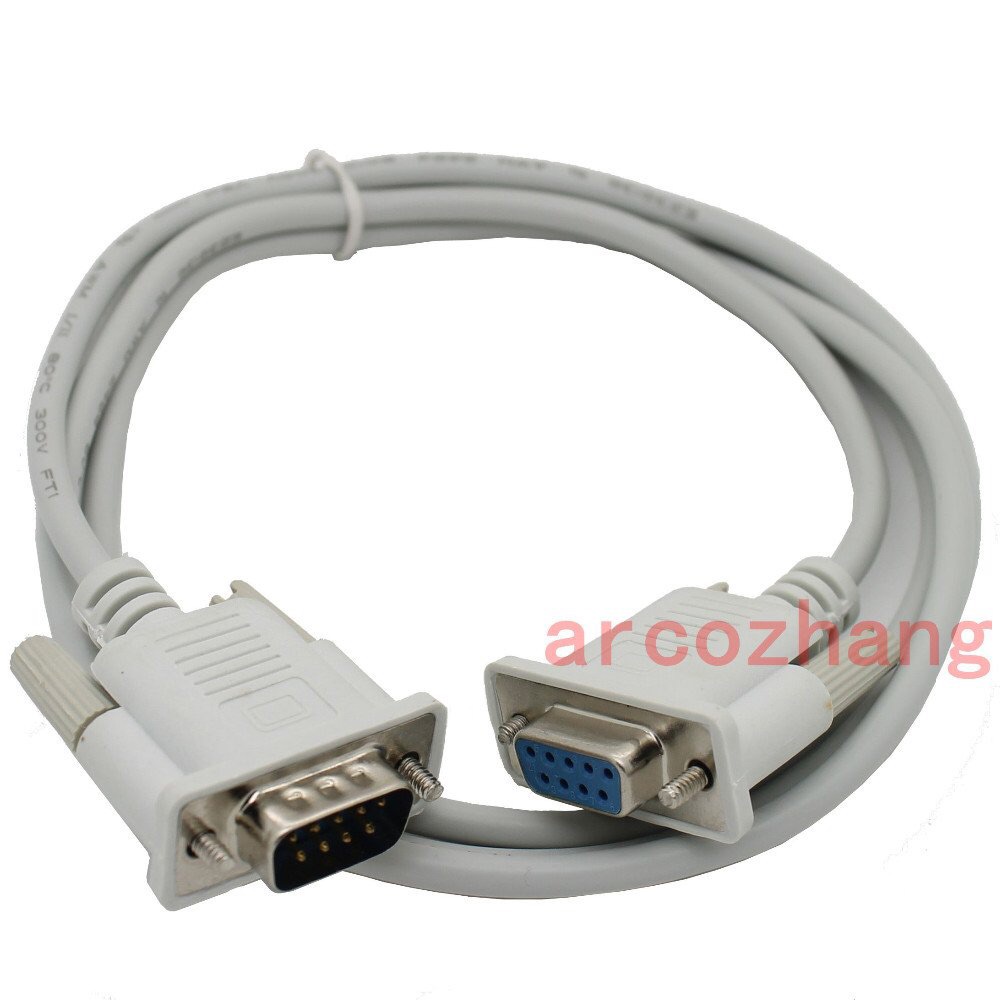

Support 232 communications, can be connected to the computer, text or touch screen.

Each output NPN power transistors, each channel inhalation instantaneous current 4A normal work for 2A

This board use industrial grade CPU,it is  powerful, faster, more stable performance, special encryption make PLC that can not be cracked.

Don't need software conversion, direct download monitoring and normal PLC as download mode
Can directly use mitsubishi programming software GX Developer or GX Works2 programming, download, debugging and monitoring.

Instruction descriptions:

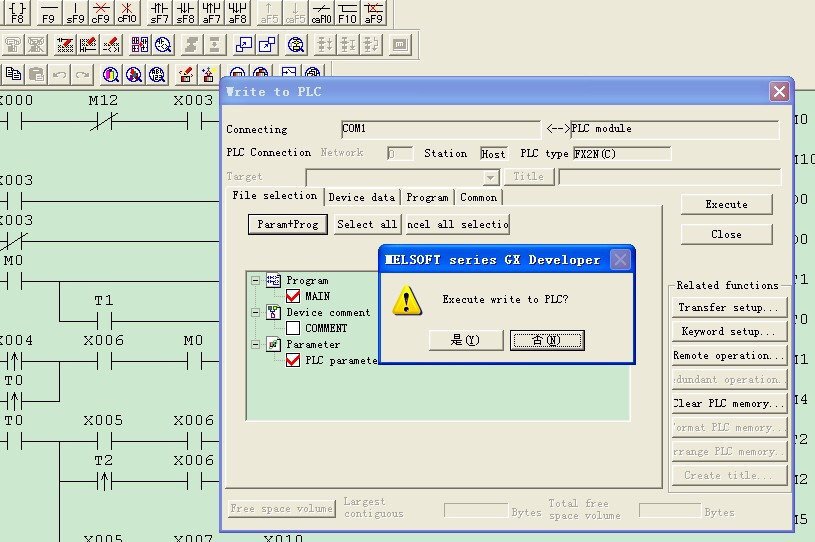

Write Program, parameters, comments
Read Program, parameters, comments
Check Program, parameters, comments

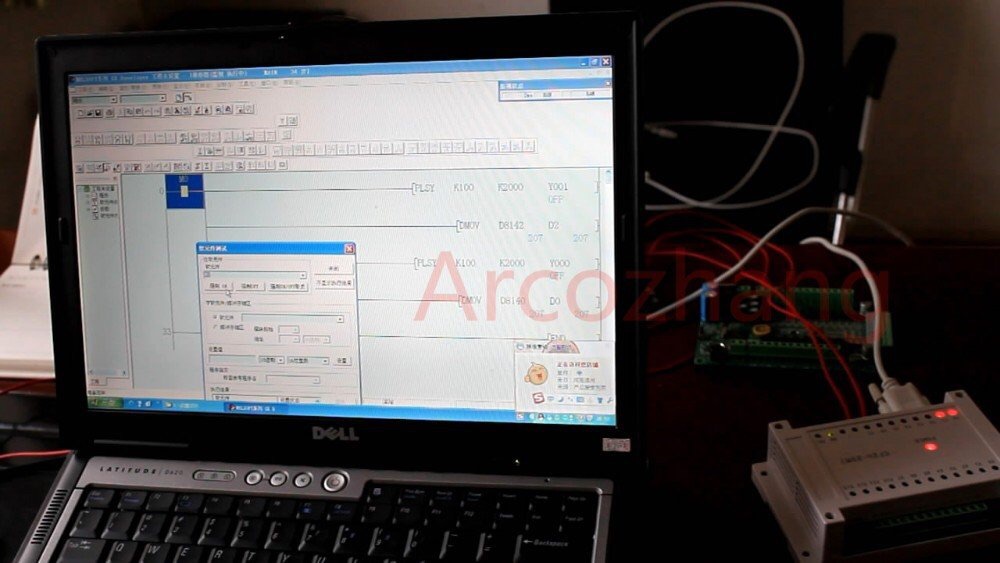

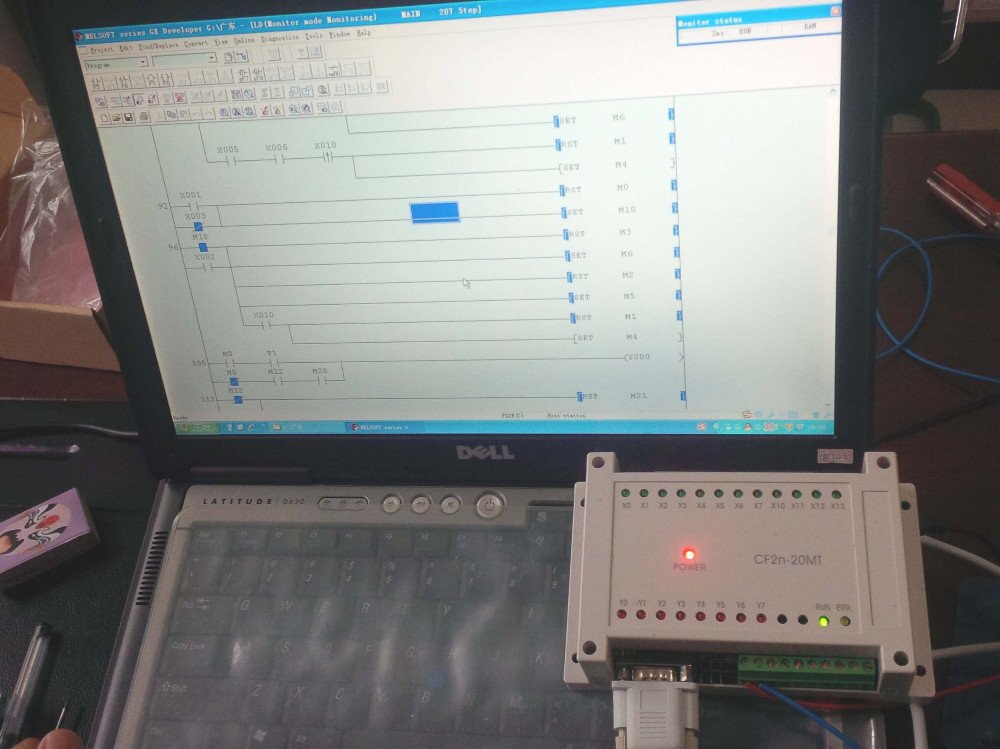

Computer monitoring function (convenient debugging)
Soft element batch function
Soft element landing function
Soft element test function
Clear memory function
Connection text HMI function (baud rate 9600, data bit 7, parity bit, even parity check (even), stop bit 1)
Connection touch screen Display function (baud rate 9600, data bit 7, parity bit, even parity check (even), stop bit 1)
Data retention during power-down  function
