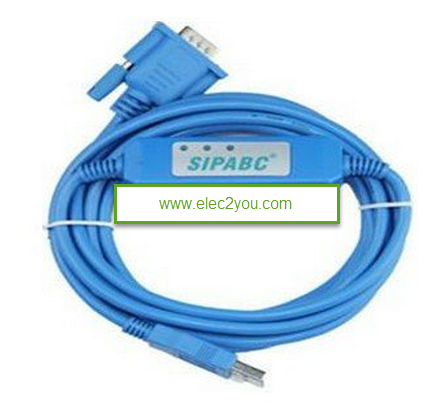

สาย USB-XW2Z-200S-CV Programming Cable for Omron PLC

Descriptions:

USB-XW2Z-200S programming cable is suitable for direct connection of OMRON PLC, Omron all models PLC RS232 interface ( DB9F hole seat ) or Omron RS232 touch screen interface ( DB9F socket ).

The support for the USB-XW2Z-200S operating system: WIN7 / Windows2000 / XP ( WinNT4 / 95 / 98 / Me / DOS does not support )

The support USB-XW2Z-200S programming software version: CX-Programmer V1.0 and above

The fully compatible with USB V1.1 and USB V2.0 specification

The USB bus power supply, consumption current of about 50mA

The baud rate: 300BPS ~ 1Mbps standard automatic baud rate adaptation

* support for UART data format: data bits: 7, 8, 1, 2: stop bits, parity bit: odd / even / no parity

In each PC supports multiple USB programming cable

The working temperature: - 20 to + 75 degrees C.

The cable length: 3 meters,Descriptions: the color: Blue

Method of use:

USB-XW2Z-200S programming cable USB need to install the device driver to use, these drivers were included in the sale of products on the disc, installing method please see driver cd video presentation.

Driver installation is completed, the Windows device manager will appear in USB-XW2Z-200S programming cable corresponds to the COM port, only in the programming software or other software application in the COM can, other communication parameters using the default settings, then use with traditional RS232 interface identical programming cable.
