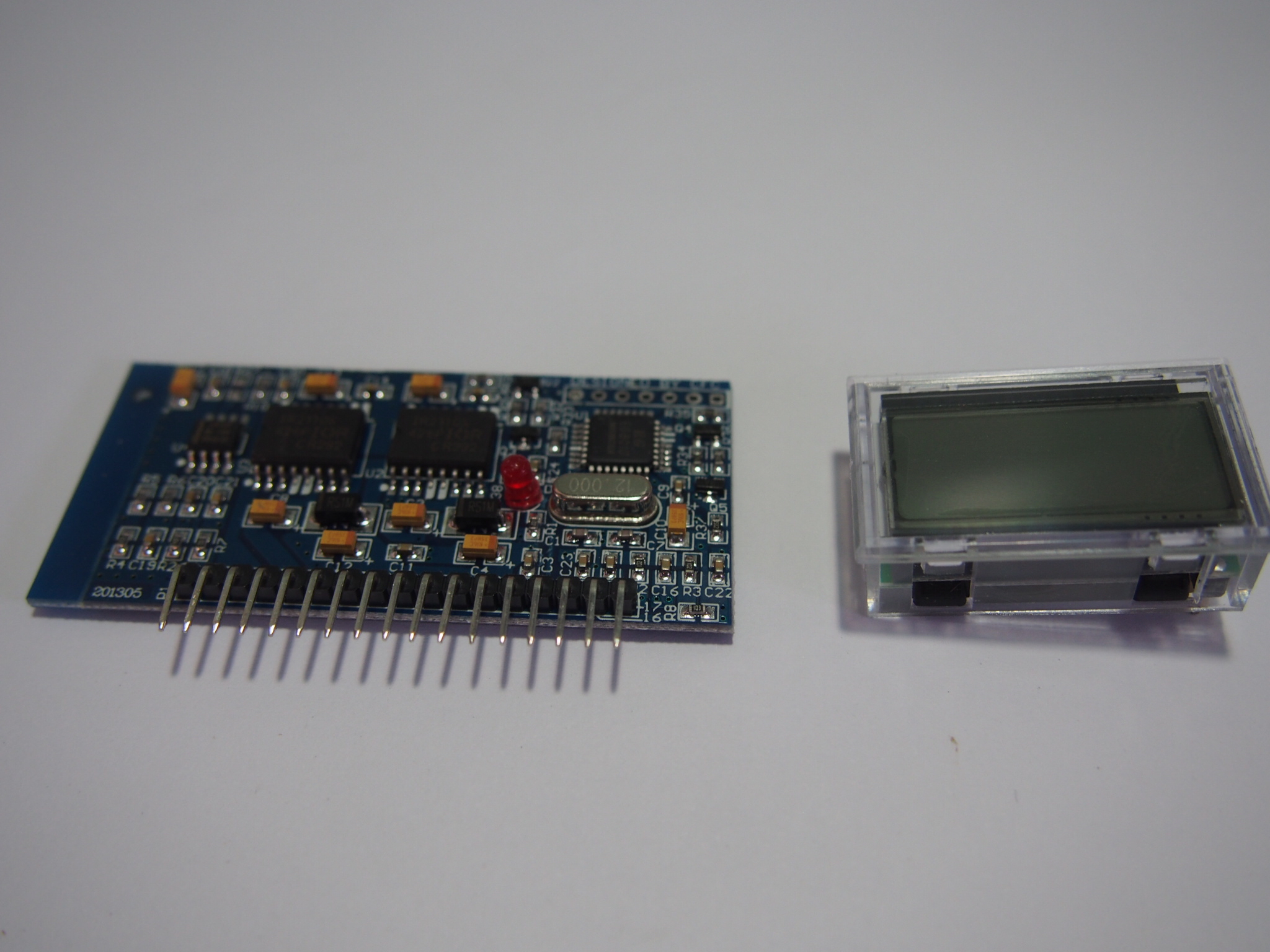

Pure Sine Wave Inverter Driver Board EGS002 "EG8010 + IR2110" Driver Module +LCD

EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost

architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small,

50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine

generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232

serial communication interface and a serial LCD driver module 12832 functions.
